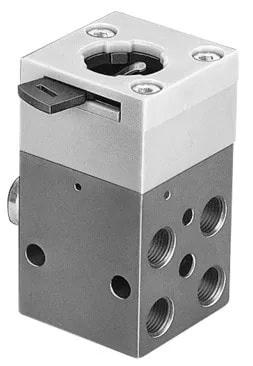

Valve function4/3 closed
Type of actuationManual
Construction width37 mm
Standard nominal flow rate (standardised to DIN 1343)170 l/min
pneumatic working portM5
Operating pressure0 bar ... 10 bar
Note on operating pressureVacuum operation at connection 3 only In the case of dual-pressure operation, the pressure at port 1 must be higher than at port 3.
DesignRotary gate valve
Nominal size4 mm
Exhaust-air functionWith flow control option
Instructions on useActuate manually only
Actuator lockcan be closed with accessories
Sealing principleHard
Type of pilotingDirect
Flow directionNon-reversible
Symbol00995944
Overlapyes
Switching position indicatorWith accessories
Explosion protectionZone 2 (ATEX) Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-20 °C ... 80 °C
Ambient temperature-20 °C ... 80 °C
Actuating torque0.5 Nm
Product weight95 g
Type of mountingWith through-hole
Pneumatic connection, port 1M5
Pneumatic connection, port 2M5
Pneumatic connection, port 3M5
Pneumatic connection, port 4M5
Note on materialsRoHS-compliant
Material sealsNBR
Material housingPA
Material leverPA
