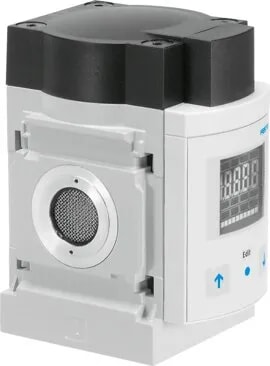

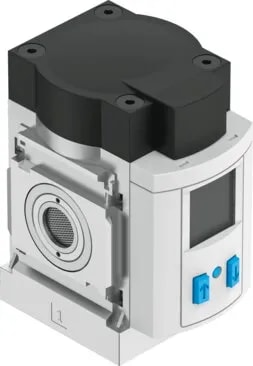

Symbol00992243
ApprovalRCM trademark c UL us listed (OL)
CE mark (see declaration of conformity)To EU EMC Directive To EU Explosion Protection Directive (ATEX) In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Explosion protectionZone 2 (ATEX) Zone 22 (ATEX)
ATEX category gasII 3G
Explosion ignition protection type for gasEx nA IIC T5 X Gc
ATEX category dustII 3D
Explosion ignition protection type for dustEx tc IIIB T80°C X Dc IP54
Explosion ambient temperature0°C <= Ta <= +50°C
Certificate issuing authorityUL E322346
Note on materialsRoHS-compliant
Measured variableVolume Volumetric flow rate
Flow directionUnidirectional P1 -> P2
Measuring principleThermal
Measurement methodHeat Loss
Start value for flow rate measuring range10 l/min
End value for flow rate measuring range1000 l/min
Operating pressure0 psi ... 145 psi
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Nitrogen
Media temperature0 °C ... 50 °C
Ambient temperature0 °C ... 50 °C
Nominal temperature23 °C
Accuracy of flow rate± (3% o.m.v. + 0.3% FS)
Repetition accuracy offset in ± %FS0.2 %FS
Repetition accuracy span in ± %FS0.8 %FS
Temperature coefficient span in ± %FS/KTyp. 0.1%FS/K
Pressure influence span in ± %FS/bar0.5 %FS/b.
Switching output2 x PNP or 2 x NPN, switchable
Switching functionWindow comparator Threshold value comparator
Switching element functionN/C or N/O contact, switchable
Max. output current100 mA
Analogue output4 - 20 mA
Flow characteristic curve start value0 l/min
Flow characteristic curve end value1000 l/min
Output characteristic curve starting value4 mA
Output characteristic curve end value20 mA
Max. load resistance current output500 Ohm
Short circuit current ratingyes
Overload protectionAvailable
Operational voltage range DC15 V ... 30 V
No-load supply current120 mA
Reverse polarity protectionFor all electrical connections
Electrical connection 1, connection typePlugs
Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
Electrical connection 1, number of connections/cores5
Electrical connection 1, type of mountingNot rotatable
Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock
Electrical connection 1, connection pattern00995383
Type of mountingWith through-hole With H-rail
Mounting positionoptional
Pneumatic connectionFor tubing O.D. 12 mm
Product weight160 g
Material housingPA-reinforced
Display typeIlluminated LCD, multi-colour
Displayable unitsl l/min m3 scf scfm
Setting optionsTeach-in Via display and keys
Protection against tamperingPIN code
Degree of protectionIP65
Pressure drop<100 mbar
Protection classIII
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
